Civil 3D + 1: Supercharging Your Workflows with the Autodesk AEC Collection (Dynamo Part 5 of 5)

Civil 3D is your engine, but pairing it with 2–3 other AEC Collection tools turns it into a full production line that’s faster, more accurate, and easier to manage.

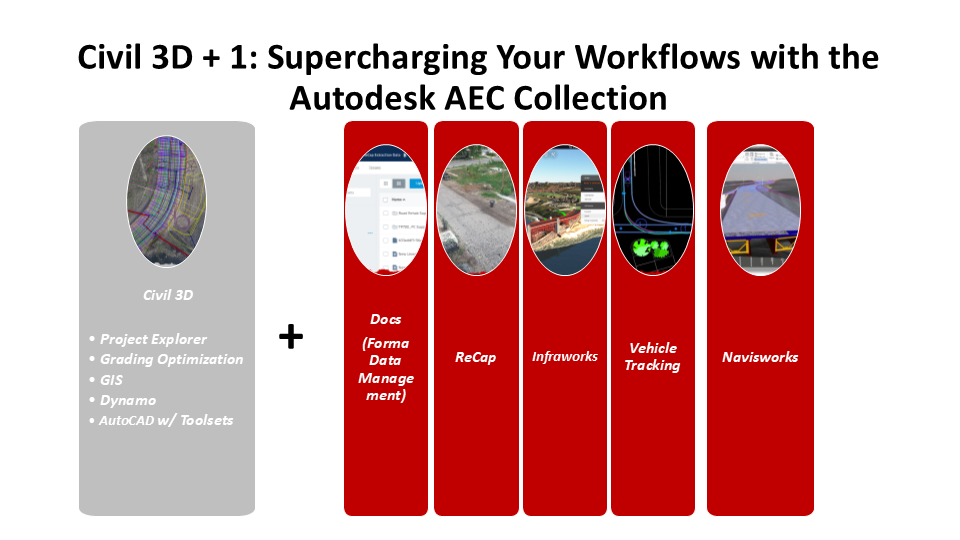

In this series, Shawn will walk through practical, low‑friction ways to pair Civil 3D with other tools you already have: Autodesk Docs (Forma Data Management), ReCap Pro, InfraWorks, Vehicle Tracking, Navisworks, etc.  He’ll tailor this towards CAD managers, but any firm, big or small, can take advantage of the “Plus One” mentality.  As a CAD manager, you don’t need to turn your team into power users of ten different programs. You do need to define a few core “paired” workflows where Civil 3D stays the primary environment, but other tools quietly handle reality capture, data management, visualization, and analysis in the background.

The goal is simple: make the work your team is already doing more efficient, more predictable, and easier to manage at scale.

Civil 3D Is the Hub, Not the Whole Machine

Civil 3D is still the design and production workhorse for corridors, grading, and plan sets. Your standards, styles, and templates all live there, and that’s not going to change anytime soon. What has changed is the ecosystem around it.

The AEC Collection is designed so models and data move between applications rather than living in isolated DWGs and PDFs.

For most land development shops, the lowest‑effort, highest‑impact combinations could look like this:

• Civil 3D + Autodesk Docs (Forma Data Management) for controlled project data and reviews.
• Civil 3D + ReCap Pro for accurate existing conditions from scans.
• Civil 3D + InfraWorks for faster concept design and visualization.
• Civil 3D + Vehicle Tracking for integrated swept path checks.
• Civil 3D + Navisworks for easy clash detection.
• Civil 3D + Dynamo for endless process automation.



Today, let’s look at Dynamo, the final application in this series.

Civil 3D + Dynamo: Dynamo script alternatives for Civil 3D clashes

As you may know, the opportunities in Dynamo are almost endless!! There’s a ton you can do, and there’s been some awesome AUGI articles on Dynamo.  One of my favorites recently was written by Lukas Drbohlav on “Property Sets for Pipe Networks in Civil 3D 2026 and how to Extend Them with Dynamo”.

Here’s a link to that article: https://www.augi.com/augiworld/issue/february-2026.

You have three main Dynamo‑based alternatives: pure Dynamo clash scripts inside Civil 3D, paid “off‑the‑shelf” Dynamo graphs, and hybrid workflows that pull clash data from Navisworks back into Civil 3D for visualization and resolution.

1. Native Dynamo clash checks in Civil 3D

Dynamo for Civil 3D can directly compare geometry in the DWG and flag both hard and soft clashes without leaving Civil 3D.

Typical scripts:

·       Compare 3D solids (e.g., corridor solids, Revit imports, structures) against pipe networks and drop a marker/solid at each clash location.

·       Compare gravity vs. pressure networks, identify where separation falls below a set clearance, and place nodes or solids on a dedicated “CLASH” layer.

·       Use a clearance parameter so the script reports either physical intersections or proximity below your standard (e.g., 1 ft vertical).

These are great when you don’t have Navisworks Manage licenses but still want repeatable clash analysis embedded in design workflows.

2. Off‑the‑shelf Dynamo scripts for clashes

Several consultants sell ready‑made Dynamo scripts targeted at Civil 3D clash work:

·       Utility Clash Detection scripts that check clearances between networks and place markers for clashes with user‑defined separation values.

·       “Clash Detection with Clearance Values” that supports corridors, utility networks, Revit‑derived solids, and other 3D geometry, dropping 3D markers wherever clashes occur.

·       Gravity‑pipe‑only clash detection graphs that take two pipe groups, a clearance value, and layer name, then draw circles at clash locations.

These can save time if you don’t want to build and debug your own graph library, especially for standard gravity/pressure network checks.

Learn Dynamo: https://primer2.dynamobim.org/dynamo-for-civil-3d

3. Dynamo as a bridge with Navisworks clashes

You can also use Dynamo to post‑process Navisworks clash results back in Civil 3D:

·       Some scripts read a clash report (coordinates) exported from Navisworks, then place circles or markers at those coordinates directly in the Civil 3D model so designers can see clashes in context.

·       Other custom graphs focus on automatic clash resolution, for example shifting pipes horizontally to remove multiple clashes in one run based on defined rules.^[8]

This hybrid approach keeps Navisworks as the clash “engine” but uses Dynamo to automate how results are visualized and addressed in Civil 3D.

4. When Dynamo vs. Navisworks / OOTB tools

Compared to alternatives:

·       Civil 3D’s native Interference Check works for gravity pipe networks only and is limited in automation/reporting.

·       Navisworks offers richer clash rules, multi‑discipline 3D context, and coordination with ACC, but adds steps and relies on external software.

·       Dynamo gives you customizable, in‑model clash checking, can include both gravity and pressure networks and arbitrary 3D geometry, and can embed your firm’s clearance rules directly into scripts.

Civil 3D ++++: How to Roll This Out Without Overwhelming Your Team

CAD and BIM managers are usually the ones accused of “throwing new software at people.” The reality with the AEC Collection is that you already own the software; what’s missing is a deliberate, phased rollout.

A practical roadmap could look like this:

1. Pick one workflow pair to pilot. For most land development groups, that’s Civil 3D + Autodesk Docs or Civil 3D + ReCap Pro.
2. Define success in operational terms. Examples: fewer lost files, faster review cycle, fewer topo‑related RFIs, better as‑built capture.
3. Document a simple, two‑page workflow. Where files live (Docs structure), who does what, and when the secondary tool enters the process.
4. Run one live project through the new workflow. Keep training focused: “Here is exactly how this project will work,” not “Here’s everything Docs/ReCap can do.”
5. Capture metrics and feedback. Use that to refine your standards and justify rolling the workflow out across more projects.

Only after that first pairing is stable should you add the next: maybe InfraWorks for concept work on larger sites, or Vehicle Tracking where access and circulation are complex.

Final Thoughts for CAD Managers

The AEC Collection will not magically make your Civil team more efficient just because it’s installed. The real leverage comes from a small number of well‑designed workflows where Civil 3D remains the primary environment and other tools quietly support the lifecycle around it: capturing reality, managing data, exploring options, and validating design decisions.

Your role as a CAD manager is to:

• Decide which workflows matter for your firm’s projects.
• Standardize how those workflows are executed, documented, and supported.
• Measure the impact so you can prove the value of doing more than just “Civil 3D plus a file server.”
