Civil 3D + 1: Supercharging Your Workflows with the Autodesk AEC Collection (ReCap Pro Part 2 of 5)

Civil 3D is your engine, but pairing it with 2–3 other AEC Collection tools turns it into a full production line that’s faster, more accurate, and easier to manage.

In this series, Shawn will walk through practical, low‑friction ways to pair Civil 3D with other tools you already have: Autodesk Docs (Forma Data Management), ReCap Pro, InfraWorks, Vehicle Tracking, Navisworks, etc.  He’ll tailor this towards CAD managers, but any firm, big or small, can take advantage of the “Plus One” mentality.  As a CAD manager, you don’t need to turn your team into power users of ten different programs. You do need to define a few core “paired” workflows where Civil 3D stays the primary environment, but other tools quietly handle reality capture, data management, visualization, and analysis in the background.

The goal is simple: make the work your team is already doing more efficient, more predictable, and easier to manage at scale.

Civil 3D Is the Hub, Not the Whole Machine

Civil 3D is still the design and production workhorse for corridors, grading, and plan sets. Your standards, styles, and templates all live there, and that’s not going to change anytime soon. What has changed is the ecosystem around it.

The AEC Collection is designed so models and data move between applications rather than living in isolated DWGs and PDFs.

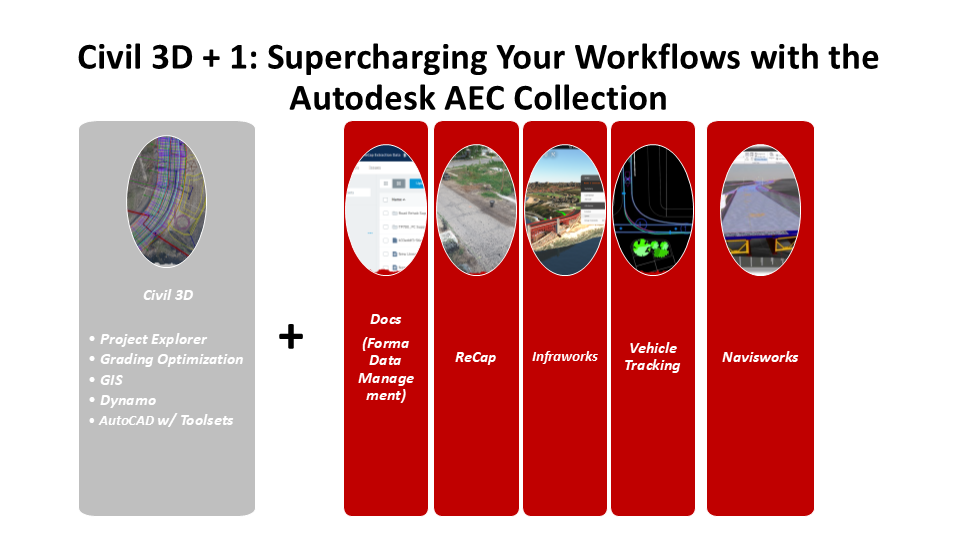

For most land development shops, the lowest‑effort, highest‑impact combinations could look like this:

• Civil 3D + Autodesk Docs (Forma Data Management) for controlled project data and reviews.
• Civil 3D + ReCap Pro for accurate existing conditions from scans.
• Civil 3D + InfraWorks for faster concept design and visualization.
• Civil 3D + Vehicle Tracking for integrated swept path checks.
• Civil 3D + Navisworks for easy clash detection.
• Civil 3D + Dynamo for endless process automation.



Today, let’s look at ReCap Pro.  Check back tomorrow to learn about InfraWorks and Vehicle Tracking.

Civil 3D + ReCap Pro: Better Existing Conditions, Fewer Field Fixes

Most projects live or die on the quality of existing conditions. Traditional survey workflows are not going away, but LiDAR and drones are now common enough that your team needs a consistent way to get that data into Civil 3D. ReCap Pro is your bridge between raw scan data and usable surfaces.

ReCap Pro lets you:

·        Import and register laser scans or drone‑based point clouds, clean them up, and package them into indexed point cloud projects (RCP/RCS).

·        Control density, cropping, and segmentation so you don’t overload Civil 3D with unnecessary data.

·        Hand off those processed point clouds for direct use in AutoCAD, Civil 3D, and Revit.

Once in Civil 3D, your team can:

·        Attach ReCap point clouds, create TIN surfaces from them, and extract key features to drive your design base.

·        Use those surfaces as the foundation for grading, corridors, and drainage design, backed by high‑fidelity existing data instead of sparse contours.

Once in Forma Data Management, your team can:

·        Utilize point cloud data feature extraction that allows you to extract reference points and linear features, such as a curbs and gutters, from a point cloud dataset.

• Export – All (or part) of your Point Features, Linear Features, or 3D Features, to one of the following exported formats:
• DXF Files (*.dxf)
• LandXML Files (*.xml)
• CSV Files (*.csv)

·        These tools are available in the ReCap Viewer within Forma Data Management. Published ReCap point cloud projects have access to these extraction tools in the viewer.

For CAD managers, the win is twofold: you improve accuracy (fewer surprises in the field) and shorten the path from a scan deliverable to a usable Civil 3D surface. Your standards can specify:

·        Where ReCap is required (e.g., complex infill sites, as‑builts, tight utility corridors).

·        How point clouds are named, stored in Forma Data Management, and referenced into Civil 3D.

·        How surfaces derived from point clouds are classified and labeled in your templates.

Sample Learning: Point Clouds in Civil 3D

In Part 3, we will look at InfraWorks and Vehicle Tracking.

BIO: Shawn has been a part of the design engineering community for roughly 20 years in all aspects of design, construction and software implementations.  He has implemented and trained companies across the Country on Civil 3D and other infrastructure tools and their best practice workflows. Shawn can be reached for comments or questions at sherring@prosoftnet.com.
